Mite 70

Trips to vent one control signal while simultaneously locking up another.Set to trip on either an increasing or decreasing control signal, the Mite 70 will vent one port to atmosphere while it locks up the pressure in a second line. The tripped position is then held indefinitely until the control signal is restored and a manual reset button is pushed. The trip point is adjustable from 1 to 100 psi with a simple screw stem. The Mite 70 can also be tripped on demand from a separate remote signal. Use the Mite 70 to open safety valves in emergency situations, trigger an alarm while locking up a valve or actuate diaphragm motor valves, air cylinders or other pneumatic actuator.


Download

Specifications

Pressure Rating

100 psig (7 bar) max.

Temperature Limits

-40°F to +180°F (-40°C to +82°C)

Port Sizes

Tapped for 1/4” NPT with 1/8” internal ports

Materials

Aluminum, Plated Steel, Neoprene, Brass and Stainless Steel

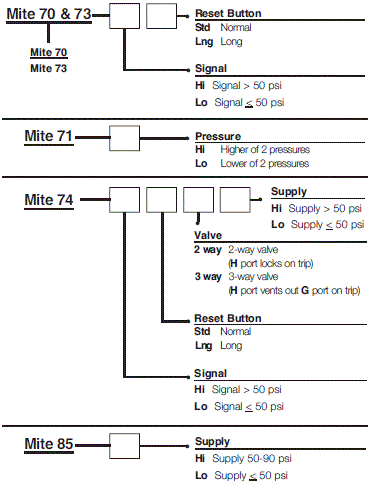

Ordering

Mite Series Snap-Acting Pneumatic Relays
