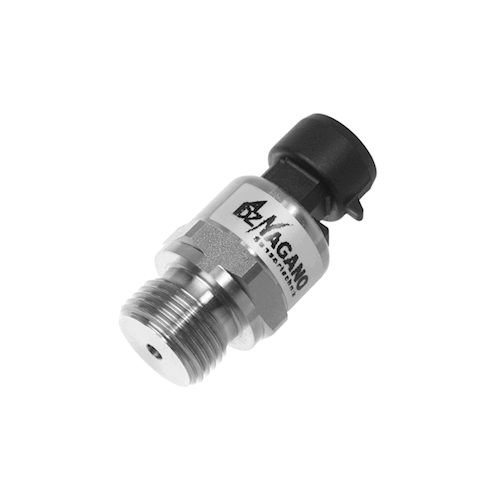

Low Pressure Transmitter in Short and Compact Design

For its short design, it can be applied in largely confined space for installation. The series distinguishes itself by a high degree of variability of both the electrical and mechanical connecting options. Moreover, because of its modular concept, it provides the use of most common types of signals in industry at reasonable cost.

SKU: SIS Category:

For its short design, it can be applied in largely confined space for installation.

Features:

  • Measuring ranges 0…0.6 bar to 0…40 bar
  • Standard signals for the industry, hydraulics and pneumatics
  • MVS/C acc. to DIN EN 175301-803 E
  • Small design ~ max. 50 mm in length
  • large variety of electrical connections

Specifications

Pressure range: 0 to 40 bar
Output signals: 0.5-4.5 V ratiometric
Response time [10-90%]: <1 ms
Accuracy: % of the range ≤ 1.00%, Option ≤ 0.50 %FS
Working temperature range (media): -40 … 105°C
Working temperature range (ambient): -40 … 85°C
Material of parts in contact with media: silicon, stainless steel, brass, aluminium, NBR O-rings
Material of housing: stainless steel, brass
Shock resistance (according IEC 60068): 1000g
IP class (according IEC 60529): up to IP6K9K (depending on electrical connection & mating)
Weight: 80-120 g









Applications

  • General industrial applications
  • Hydraulics
  • Pneumatics
  • Mechanical engineering
  • Automotive industry
  • Plant engineering and automation technology
